Holo Audio

Holo Audio Spring 3 DAC

Holo Audio Spring 3 DAC

Regular price R 54,900.00
Regular price R 54,900.00 Sale price R 54,900.00
On Promotion Sold out
Tax included.
Version

The DAC that is taking the world by storm. This new Spring 3 is a full discrete R2R type audio decoder and does not have off the shelf-DAC chip. This is a bespoke custom-designed core DAC module and truly a breakthrough with technology for any DAC chip today. Trickle down technology from the Flagship May DAC. The Spring3 is here to achieve new heights, new dynamics and simply a full spectrum of audio to please the aural senses.

We offer 3 versions of this fantastic DAC:

  • Level 1Standard USB Module, Copper Roundwire Otype transformer, Shurter fuse, no Remote Control, USB Cable
  • Level 2Standard USB Module, Standard Copper Roundwire Otype transformer, HoloAudio Caps, Schurter Gold Fuse, CNC Remote Control. USB Cable
  • KTE Version - Enhanced USB Module w/ Titanis 2.0 circuit, Flatwire Otype transformer, Handselected dac module, HoloAudio Caps, 4N Silver 1.5mm wire at IEC inlet, HoloAudio Red Nano Fuse, CNC Remote Control, Copper KTE "fox" logo emblem. USB Cable

The DAC can be supplied with an optional analogue Preamplifier. Please contact us about this option.

Stereophile Review - KTE Version:

"To me, a DAC is just a DAC—until it wipes away digital glare and opens the listening door all the way, letting me enter the plain-truth wonderments of the recordings I collect. And the HoloAudio Spring DAC "Kitsuné Tuned Edition" (Green Label "99.99% Silver" O-Type transformer) aka Level3 did exactly that. Its sense of undamaged, I-am-there truthfulness let me relax and enjoy my CDs, and DSD and other hi-rez files, with renewed faith in digital sound."

Stereophile Class A component

View full details

PRODUCT INFORMATION

PRODUCT DESCRIPTION

DSD is natively supported this R2R Discrete DAC. In fact these are two separate DAC’s, now does DSD and one PCM. Completely separate to achieve highest results. Holo Audio supports DSD natively on R2R DAC. Impressive technology resulting in excellent sound quality, benefit true capabilities of DSD. This is not the DSD converted to PCM before digital-analog converter, but directly by the discrete components of the DSD digital to analog converter. Supported currently on MAC (DOP) and Linux (DOP), and Windows/PC (Direct Native and DOP).

A new generation of linear compensation technology. A better solution to the resistance, accuracy errors caused by switching components and PCB, after compensations makes the equivalent accuracy reach 0.00005%.
The new generation of de-glitch technology can provide a full range without increasing the noise floor or other adverse effects.
Based on this new generation of technology, “泉3” Spring3 (non preamp model) can provide a SINAD of >112dB and a dynamic range of >128dB, which represents the performance limit reached by today’s most advanced R2R architecture DAC.
Using the ultimate performance of PLL+FIFO technology, provides 0.1Hz Third-Order low-pass ability to inhibit jitter. It also uses a high-performance femtosecond VCXO as the PLL clock source. Under the premise of being almost immune to the front-end jitter, it can also lock up to 1.5us-2us @ 1KHz signal with high jitter. (It can lock up to 1.5us-2us @ 1kHz signal with high jitter on the premise of almost being immune front-end jitter).
The USB interface uses proprietary firmware with ultra-low latency, a highly reliable data transmission, ideal USB eye pattern measurements that contributes to 2-4 times higher performance than official firmware.
A single, independent HDMI-I2S input interface is provided, which has a four-way independent circuit, as opposed to standard LVDS chip, making I2S clock signals subject to lower interference and lower jitter. In addition, the I2S input can be configured with a specific pinout configuration, making it compatible with most of the HDMI-I2S digital devices on the market.

This Level 1 model has basic caps for the PSU, and does not include a CNC remote. It has standard Red label 5N Copper Otype Transformer, round wire type copper wiring. Considered the base model however packs a mean punch for price per dollar performance ratio. (no remote control in this version

Level 2 Model

(With HoloAudio caps for ultimate power filtration and improved sound quality – Sound quality is refined and more relaxed, transparent and details are more refined and clear while remaining neutral. ) This is a popular option for those who want a little more out of their dac with improvement of sound from the caps as well as this version will include the cnc machined aluminum remote control.

KTE Model

The highest grade components are used in our very popular KTE version products. Exclusive to the Spring 3 KTE model; The enhanced USB module found in the MAY DAC, which includes Titanis 2.0 FPGA circuit .This Spring3 KTE version will include an upgraded ultra premium transformer that is 100VA O-Type Flatwire type .The sound improvement is not subtle, it’s a night and day improvement in our opinion and many of our customers agree. Kitsune has tuned this Spring 3 DAC for no compromise performance and targeted at the enthusiast audio lover. This transformer is our finest available model and makes the Spring’s sound quite elegant and improved detail. more features mentioned below

SPECIFICATIONS

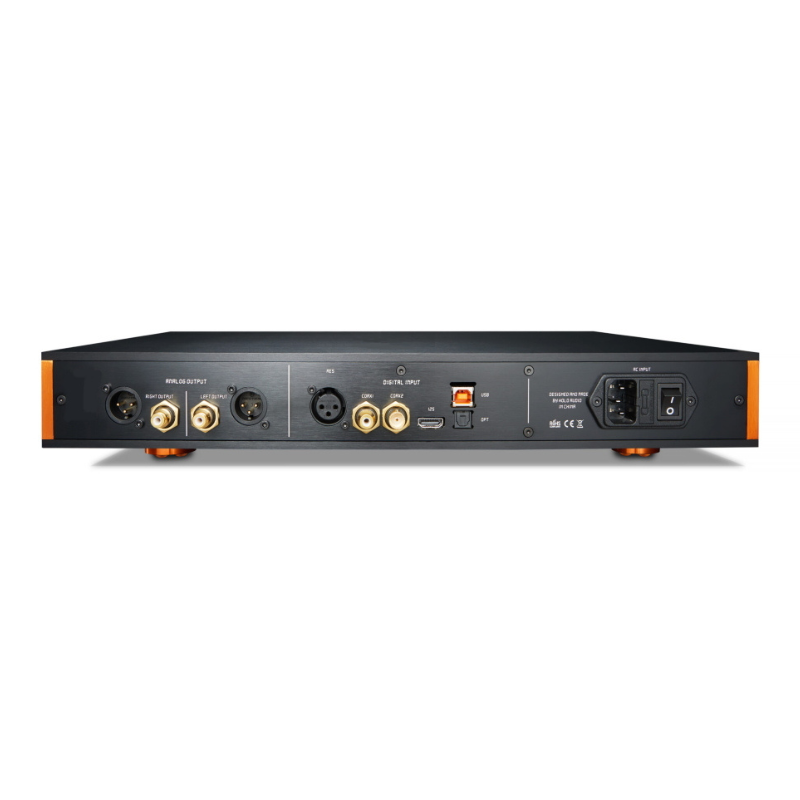

NPUTS (Digital):
USB (ground isolation)
RCA coaxial
BNC coaxial
AES
optical fiber
I2S (HDMI) – improved ultra high performance 4way custom circuit (NOT LVDS anymore)
*USB supports Linux; MAC and Windows (7,8 10, 2012)
*HDMI LVDS Compatible with Singxer SU-2 / SU-6 and Pink Faun I2S Bridge
*All digital input interface supports DSD (DOP mode).

Outputs (Analogue):
RCA single-ended
XLR balanced

Physical Characteristics:
Size (Chassis): 430x300x55mm (W x L x H, Dimensions do not include protruding parts)
Weight: 8.5kg
Power Specifications: 110-120VAC / 220-240VAC 50/60Hz
